XDi standard library viewer

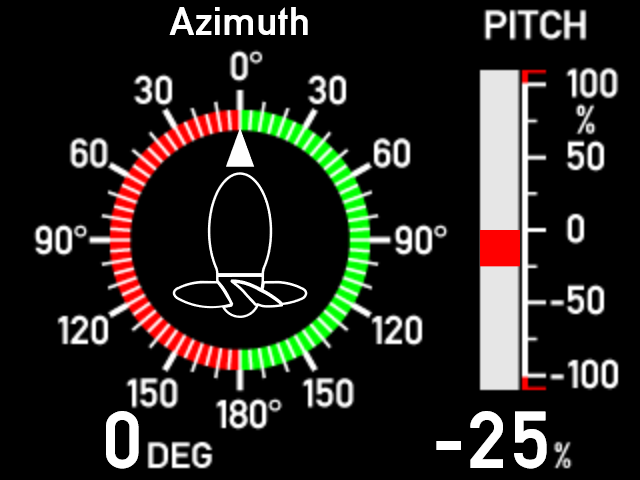

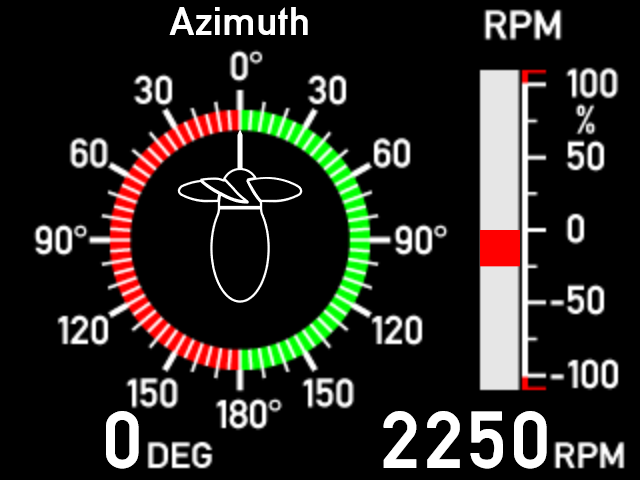

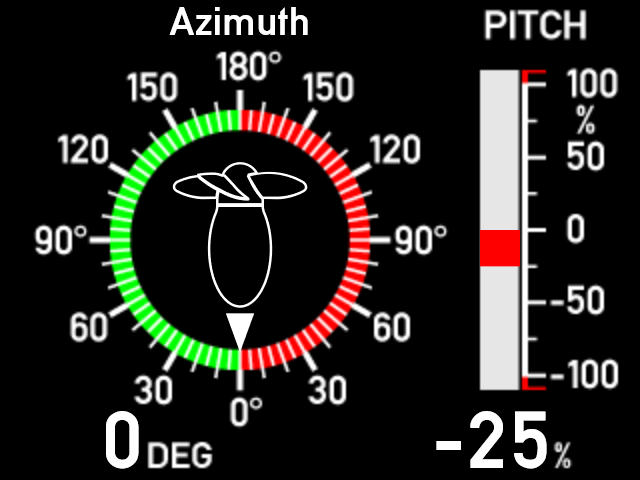

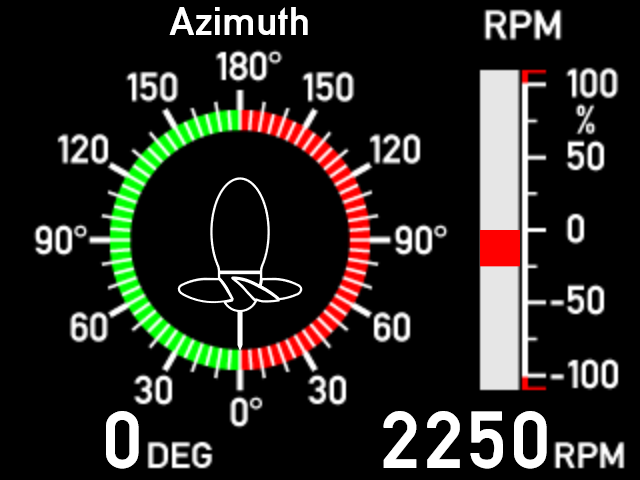

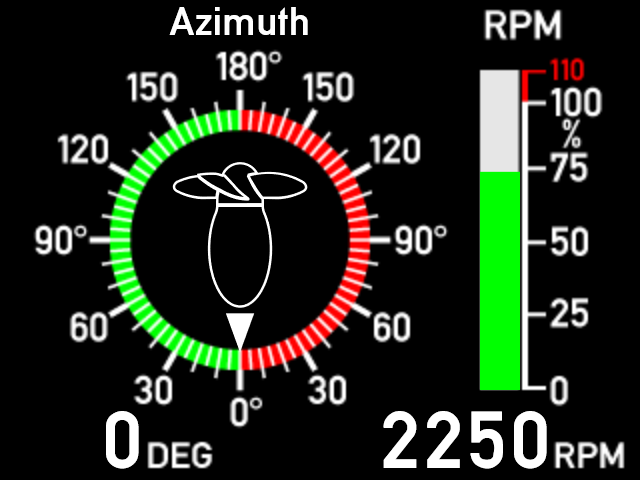

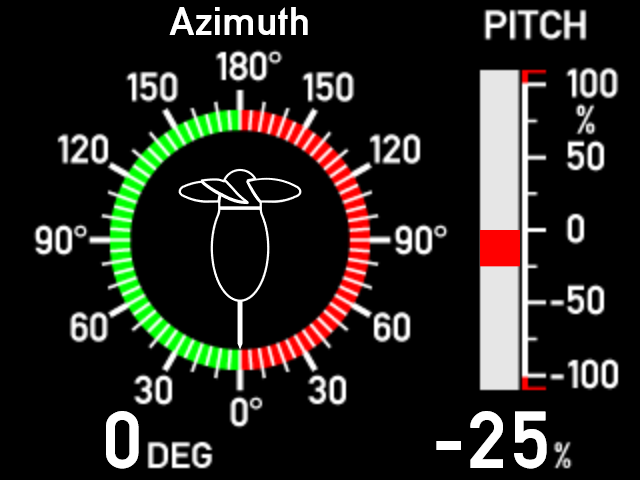

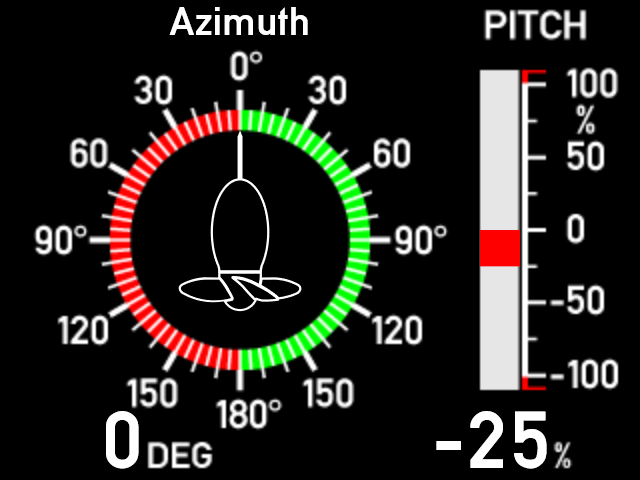

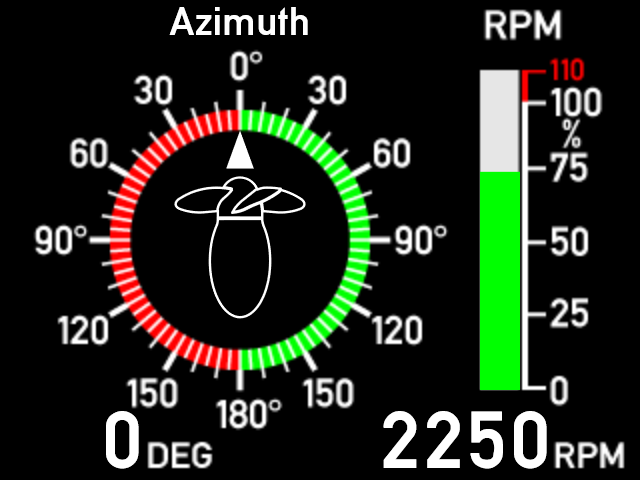

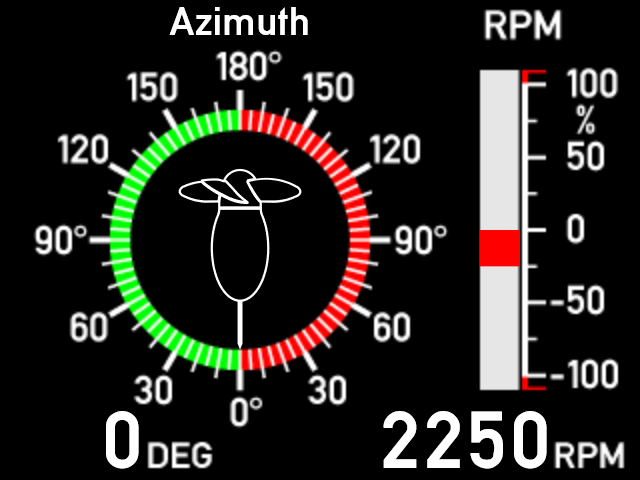

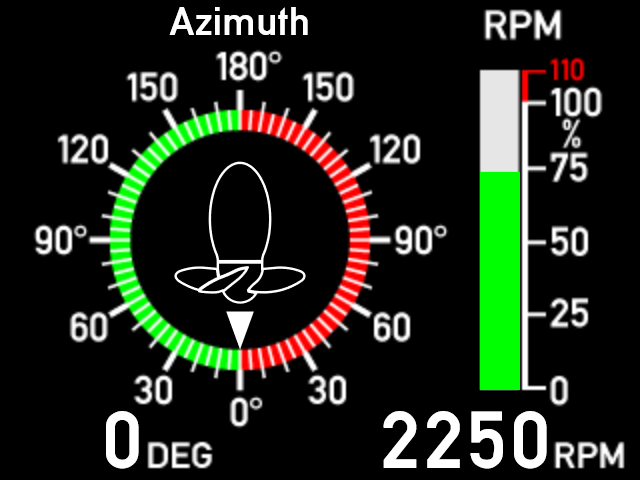

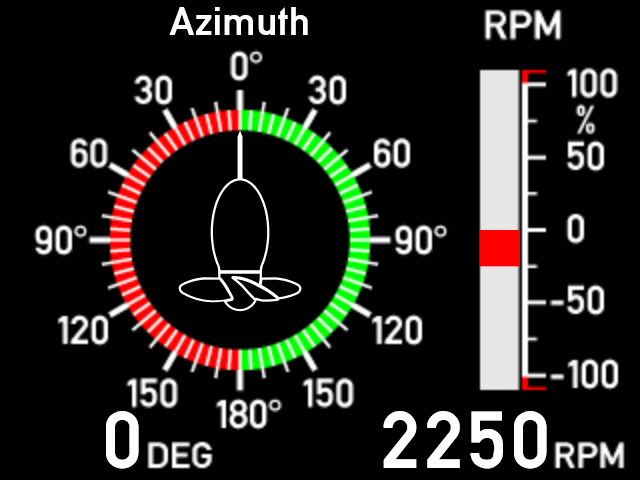

DEIF’s XDi standard library viewer gives an overview of various Virtual Indicators contained in each library. Browse by:
- Size of XDi (96 or 144/192)
- Performance type (Dual – two inputs, Multi – three or more inputs and Nav for Navigation and Wind Applications)
- Owner selects main application type
- Library provides lists various libraries, each of which contain numerous Virtual Indicators to choose from
DEIF also provides a custom library service to allow easy installation for your specific application. For more details on please refer to XDi libraries document.
DEIF also offers an equivalent scale viewer for the analogue XL indicators – please refer to XL scale viewer page.
Contact us to discuss your options
- 90 years of energy pioneering
- Manufactured at the highest standards
- Superior quality
- Unmatched service and support
- Made in Denmark
Flexible display bridge indicator XDi
Illuminated display indicator features
- TFT graphical LED 3.5, 5 or 7" display
- Multiple virtual indicator layouts selectable from library
- Standard and custom scale designs
- Displays 1 or more values
- 96, 144 or 192 DIN cutouts
- XDi-Net – a short-cut to CAN bus
- Reduced wiring and installation
- Instant repairs on board
- MED and other relevant class approvals
Flexible display indicator for navigation applications Navigation Indicator (XDi-N)
- TFT graphical LED 3.5, 5 or 7" display
- Two CAN ports with CANopen and XDi-net
- Redundant power inputs
- XDi-Net – add multiple XDi indicators
- Up to six NMEA inputs & up to four outputs
- NMEA data offset and averaging functions
- Dimmer controllable using front/external pushbuttons, analogue, NMEA or CAN/XDi-net.
- 3 level priority data fall-back function
- True wind data calculation
- Calculate magnetic or true heading
- XDi-net group dimmer and day/night colour shift
- Toggle between up to four predefined indicator screens using the mode function
- Quick-switch between measuring units either locally or for the entire system
- Customised indicator designs available on request
- Standard day and night designs, dusk on request
- Optional analogue or digital inputs
- Optional warning and alarms/relay output
- MED and other relevant class approvals
Flexible display indicator for wind and weather applications Wind Indicator (XDi-N)
- TFT graphical LED 3.5, 5 or 7" display
- 96, 144 or 192 DIN cutouts
- Two CAN ports for easy interfacing
- XDi-Net – add multiple XDi indicators
- Redundant power inputs
- Compatible with wind sensors providing NMEA data (such as DEIF’s ultrasonic wind sensors)
- Up to six NMEA compatible inputs
- Up to four NMEA outputs
- Relative, true & geographic wind indication
- Toggle between up to four predefined indicator screens
- Quick-switch between wind speed measuring units (knots, m/s or m/h, km/h, beaufort)
- Dimmer controllable using front/external push-buttons, analogue, NMEA or CAN/XDi-net
- Standard day and night designs
- Customised indicator designs available on request
- Optional analogue or digital input
- Optional wind warning and alarms/relay output
- Optional IP66 protection
